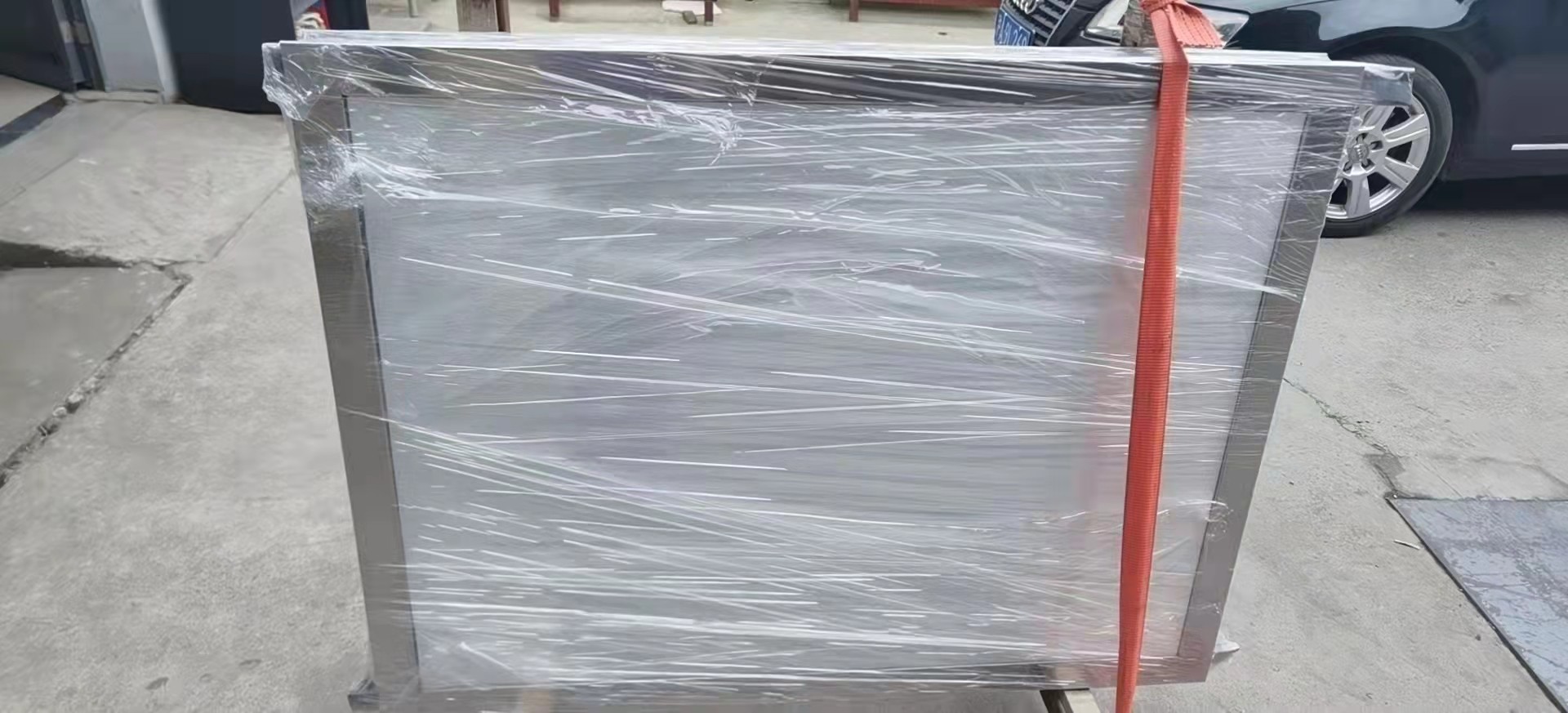

X Ray 25mm Thickness Radiation Protection Lead Glass 4.1g/Cm3 With Frame

Plaats van herkomst CHINA
Merknaam Jovi
Certificering CE
Modelnummer 1-cf.-15
Min. bestelaantal PC 5
Prijs USD800-1200/PC
Verpakking Details Verpakt die in kraftpapier-document, dan in houten geval wordt ingepakt. Grootte volgens flintglasgr
Levertijd 5-8 het werkdagen
Betalingscondities L/C, T/T, Western Union
Levering vermogen 3000pcs per maand

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Product Name X Ray Radiation Protection Lead Glass 25mm thickness with frame Function CT Xray Protection
Shape Square Destiny 4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³
Frame with Frame or without frame Lead equivalent 25mm thickness
Hoog licht

4.1g/cm3 radiation protection lead glass

,

radiation protection lead glass with frame

,

25mm lead glass x ray protection

Laat een bericht achter
Productomschrijving

X Ray Radiation Protection Lead Glass 25mm thickness with frame



Specification



We provide lead glass for your project-specific requirements. Select from standard sizes or request a quote for custom sizes or lead thicknesses.All the x-ray lead glass listed here meet 2mm lead equivalency based @ 150kvp.

We offer higher lead equivalencies if required.While this is the most common lead equivalency for general x-ray rooms used by doctors, dentists, chiropractors, and medical centers; you will still need to check with your local health official or radiation physicist to determine the required lead shielding for your room.

X-RAY GLASS IS:

  • Available in 1.6mm, 2.0mm, 2.4mm, 3.2mm and 3.7mm lead shielding equivalences and higher ratings are available upon request.
  • Uniformly dense and is a composition of high quality materials providing a dependable shielding value.
  • Utilized for medical x-ray, gamma, alpha and beta photon shielding only.
  • Not for thermal neutron or fast neutron shielding. X-Ray lead glass will NOT shield against Magnetic Resonance Imaging (MRI), electro-magnetism or radio-frequency, ultrasound, laser or any non-ionizing types of radiation.




  8mm 10mm 12mm 15mm 18mm 20mm 25mm
( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20 2400* 1200* 25


X Ray 25mm Thickness Radiation Protection Lead Glass 4.1g/Cm3 With Frame 0



Application



We supply the radiation-proof lead glass sheets,lead screens,Lead sheets are mainly used to the radial protection and shielding protection.

and our sale lines also including :lead glass doors,lead glass windows,lead glass pipes,lead wires,and barium sulfates ,etc.The radiation protection lead glass sheet is one of high-teach ionizing radiation protection products. The Pb equivalent of the lead glass sheets are including 2Pb,3Pb,4Pb,5Pb,6Pb,8Pb and so on.and the sizes of the lead glass sheets are according to the customers requires .







FAQ:

PET CT Room 50mm Thickness Radiation Protection Lead Glass



Q. What about the lead time?

A: Usually 5- 8 work days.



Q. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc is available.



Q. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.
