Zf3 Radiation Protection Lead Glass Xray Shielding With 8mm Thickness

Plaats van herkomst CHINA
Merknaam Jovi
Certificering CE
Modelnummer 1-cf.-15
Min. bestelaantal PC 2
Prijs USD1500-1800/PC

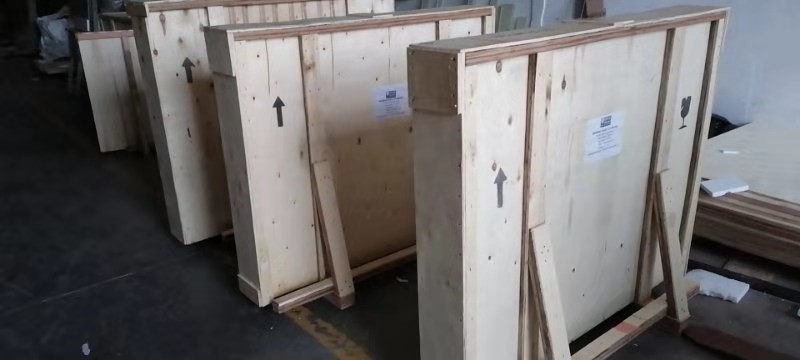

Verpakking Details Verpakt die in kraftpapier-document, dan in houten geval wordt ingepakt. Grootte volgens flintglasgr
Levertijd 5-8 het werkdagen
Betalingscondities L/C, T/T, Western Union
Levering vermogen 3000pcs per maand

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Thickness 8mm thickness (1.7mmPb ) MOQ 2 pc
Color Transparent Packing Customized Wooden Case
Function Xray Protection Shape customized shape
Hoog licht

zf3 radiation protection lead glass

,

xray ct radiation protection lead glass

,

xray shielding zf3 lead glass

Laat een bericht achter
Productomschrijving

ZF3 Xray Lead Shielding Lead Glass with 8mm thickness



Description:



  We can offer different thickness and customized size of lead glass. It is widely and mainly used for X-ray CT Installation Projects.

To provide viewing of the patient in the x-ray room while providing protection to the operator, lead glass viewing windows can be furnished in the barrier.

Lead glass can be installed in multiple layers so as to provide a lead equivalency to the lead in the wall in which it is installed.



Specification:



  8mm 10mm 12mm 15mm 18mm 20mm 25mm
( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20 2400* 1200* 25


Zf3 Radiation Protection Lead Glass Xray Shielding With 8mm Thickness 0



Notices:

 1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.

 2. When installation, the glass must be mismatched with the wall protection material to prevent radiation

leakage at the joint.





Application:



Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc.

Lead glass is also known as medical X-ray radiation-proof lead glass plate in the medical field.

Lead glass is mainly used for diagnostic X-ray machine rooms, CT, ECT, PET, CT-PET and other machine

rooms, as well as observation Windows on the protective screen of protective doors.





FAQ:



Q. What about the lead time?

A: Usually within 5- 8 working days.



Q. Do you have any MOQ limit for led light order?

A: Low MOQ, 2 pc is available.



Q. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea or express
